14 CABINETS · 20 SELECTABLE COMPONENT DESIGNS

Build the cabinet from the enclosure outward.

Choose one of seven Wraith or seven Frost cabinet structures, select a modeled speaker voice and microphone, then refine position, distance, angle, room treatment and damping. The new Octet 8x8s use eight 8-inch drivers arranged in four columns and two rows.

CABINET STRUCTURES

Seven identities per realm. Grilles up front, drivers at the rear.

Wraith 2x12 and IceBox 2x12 pair two drivers horizontally. The Horizons use a wide 12x12 array. Current grille-front artwork is shown below; the Octets add their own eight-driver rear artwork.

Wraith Guitar

7 cabinets · including the Octet 8x8

4X12

WRAITH GUITAR · MONO

ABYSS 4x12

OBSIDIAN HEARTWOOD

Tight lows / modern bite

Modeled response & format

Format: 4x12
Response: LOW 42 • BODY 56 • DETAIL 58 • 5.9 kHz
Effect: Fast low-end recovery and a forward modern attack.

4X12

WRAITH GUITAR · MONO

IRON 4x12

CRYPTROOT

Dense mids / controlled fizz

Modeled response & format

Format: 4x12
Response: LOW 48 • BODY 62 • DETAIL 48 • 6.1 kHz
Effect: Adds centered midrange density while containing abrasive highs.

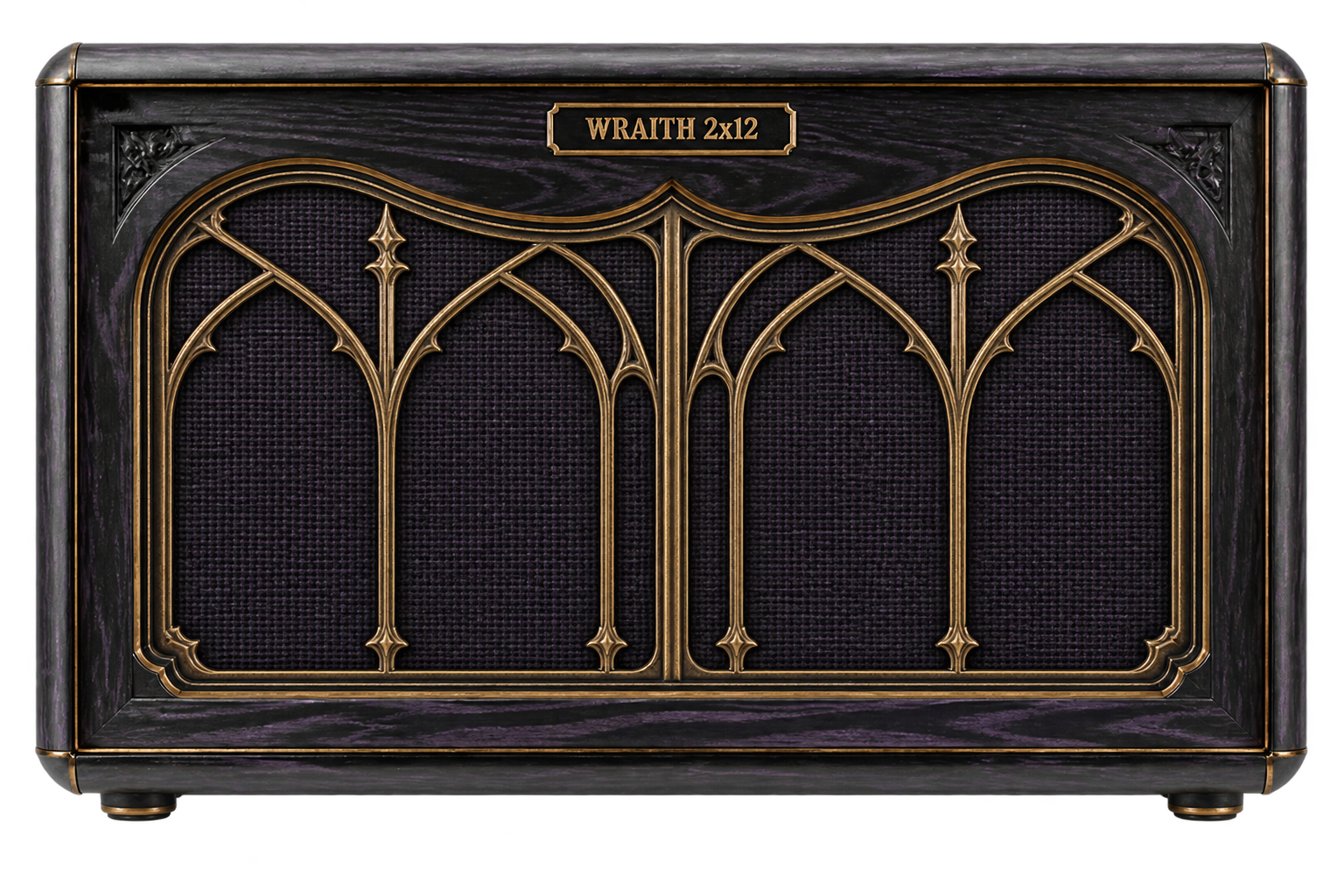

2X12 HORIZONTAL

WRAITH GUITAR · MONO

WRAITH 2x12

WRAITHWILLOW

Paired punch / wide focus

Modeled response & format

Format: 2x12 horizontal
Response: LOW 44 • BODY 58 • DETAIL 67 • 6.8 kHz
Effect: Pairs two horizontal speakers for clear pick attack and note separation.

HORIZON / WIDE

WRAITH GUITAR · STEREO

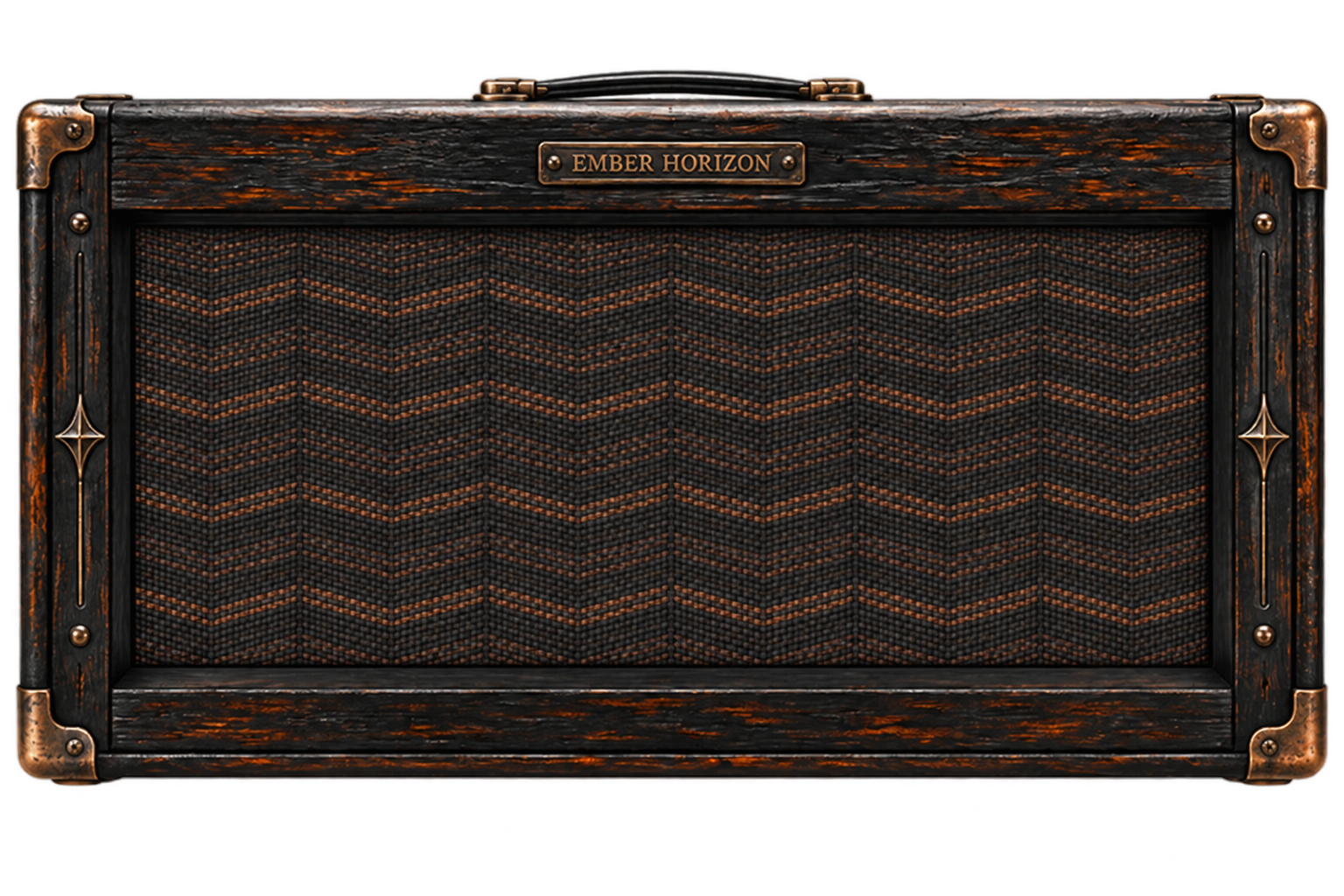

EMBER HORIZON

EMBERGRAIN

Wide growl / soft-edge spread

Modeled response & format

Format: wide 12x12
Response: LOW 60 • BODY 58 • DETAIL 40 • 6.0 kHz
Effect: Spreads a softer-edged guitar body across the stereo ritual path.

4X10

WRAITH GUITAR · MONO

CRYPT 4x10

GRAVEBARK

Fast attack / focused body

Modeled response & format

Format: 4x10
Response: LOW 44 • BODY 66 • DETAIL 54 • 6.6 kHz
Effect: Tightens transient response while retaining a compact low-mid body.

1X12

WRAITH GUITAR · MONO

MOON 1x12

MOONVEIN

Compact air / vintage rolloff

Modeled response & format

Format: 1x12
Response: LOW 52 • BODY 54 • DETAIL 38 • 7.0 kHz
Effect: Creates an intimate vintage voice with restrained high-frequency reach.

8X8 / EIGHT 8-INCH DRIVERS

WRAITH GUITAR · MONO

WRAITH OCTET 8x8

OBSIDIAN HEARTWOOD

Quick attack / focused low-mid bite

Modeled response & format

Format: 8x8 / eight 8-inch drivers
Response: LOW 46 / BODY 64 / DETAIL 62 / 7.2 kHz
Effect: A modeled compact-driver voice with focused low mids and clear pick attack; not a measured physical enclosure.

Frost Bass

7 cabinets · including the Octet 8x8

8X10

FROST BASS · MONO

FROST 8x10

FROSTHEART

Fast punch / defined lows

Modeled response & format

Format: 8x10
Response: LOW 62 • BODY 58 • DETAIL 46 • 5.0 kHz
Effect: Delivers fast repeated-note punch while keeping the foundation controlled.

4X10

FROST BASS · MONO

GLACIER 4x10

GLACIERGRAIN

Modern growl / controlled sub

Modeled response & format

Format: 4x10
Response: LOW 68 • BODY 62 • DETAIL 42 • 5.2 kHz
Effect: Balances low-mid growl with a disciplined sub-frequency floor.

HORIZON / WIDE

FROST BASS · STEREO

ABYSS HORIZON

ABYSSROOT

Wide sub authority / broad body

Modeled response & format

Format: wide 12x12
Response: LOW 80 • BODY 55 • DETAIL 32 • 4.8 kHz
Effect: Builds broad stereo low-frequency authority with restrained upper detail.

1X15

FROST BASS · MONO

IRON LOW 1x15

IRONFROST

Vintage bloom / round weight

Modeled response & format

Format: 1x15
Response: LOW 74 • BODY 60 • DETAIL 36 • 5.0 kHz
Effect: Adds slower vintage bloom and rounded sustained weight.

6X10

FROST BASS · MONO

TUNDRA 6x10

TUNDRABARK

Articulate attack / dense mids

Modeled response & format

Format: 6x10
Response: LOW 64 • BODY 68 • DETAIL 44 • 5.4 kHz
Effect: Combines multi-driver speed with dense, mix-forward bass mids.

2X12 HORIZONTAL

FROST BASS · MONO

ICEBOX 2x12

ICEVEIL

Paired snap / wide projection

Modeled response & format

Format: 2x12 horizontal
Response: LOW 56 • BODY 66 • DETAIL 54 • 5.9 kHz
Effect: Pairs two speakers horizontally for fast bass attack and focused low mids.

8X8 / EIGHT 8-INCH DRIVERS

FROST BASS · MONO

FROST OCTET 8x8

FROSTHEART

Fast bass articulation / defined foundation

Modeled response & format

Format: 8x8 / eight 8-inch drivers
Response: LOW 60 / BODY 68 / DETAIL 56 / 6.2 kHz
Effect: A modeled compact-driver bass voice with defined low mids and fast articulation; not a measured physical enclosure.

SPEAKER LIBRARY

Front cones. In their own realms.

Compact previews open in the laboratory. Expand details only when you need them.

2.4.10 offers ten selectable speaker voices. Cryptfire 8 and Cryosteel 8 join their matching realm below as front-artwork previews; their dedicated voices are planned for the next plugin update.

Wraith Guitar

Five selectable voices · one upcoming Octet design

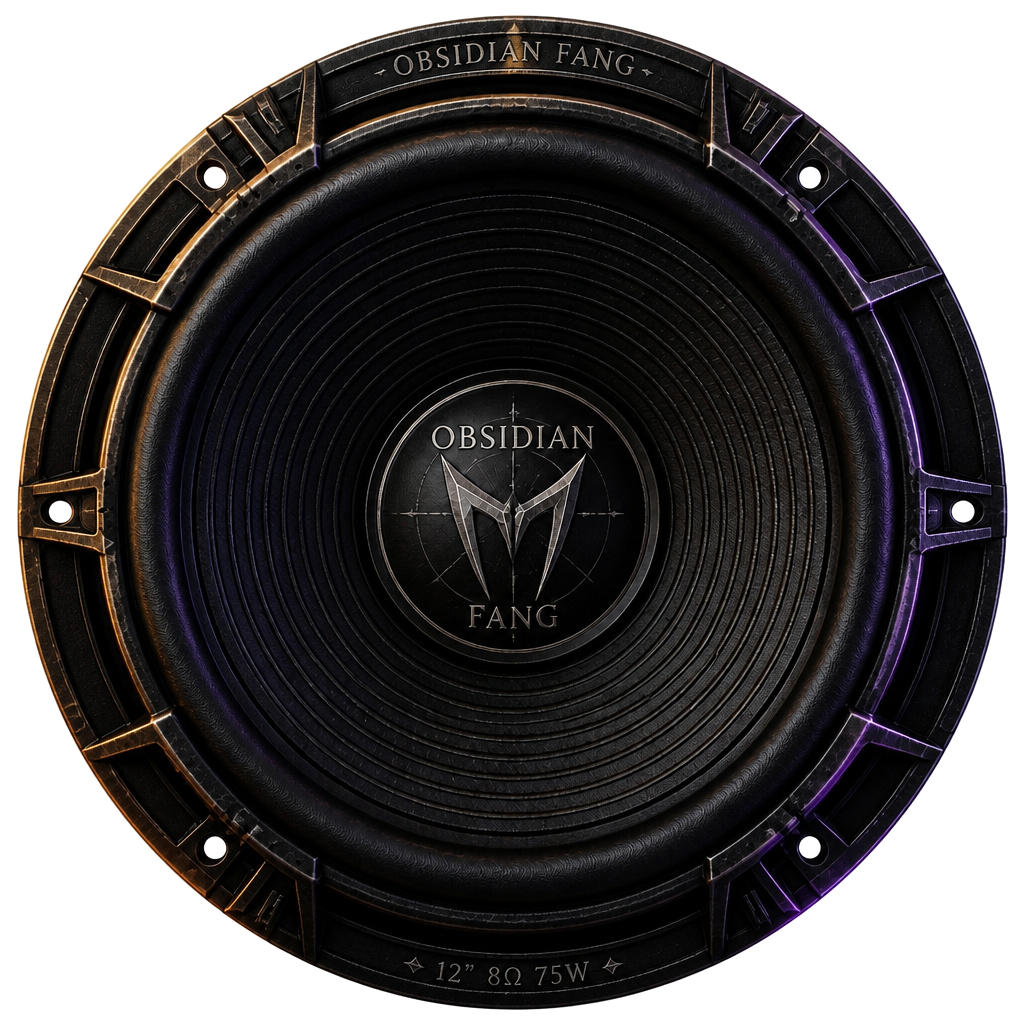

SPEAKER · WRAITH GUITAR

Obsidian Fang 12

Tight lows, forward upper mids and a hard-edged attack.

Specifications & placement

Nominal format: 12 in · 8 Ω · 75 W modeled target
Low reach: Firm to approximately 72 Hz
Mid contour: Focused 1.4–2.8 kHz bite
Top character: Extended, assertive presence
Transient / compression: Fast attack · moderate clamp

Why it exists

The modern reference voice: fast enough for dense rhythm work while retaining audible pick shape.

Best for

Low-tuned rhythm, modern metal and layered guitars.

Tradeoff

Can expose fizz when aimed too close to the dust-cap center.

Starting point

Ironjaw D1, 5 cm, 15° off-axis, 38% from center.

SPEAKER · WRAITH GUITAR

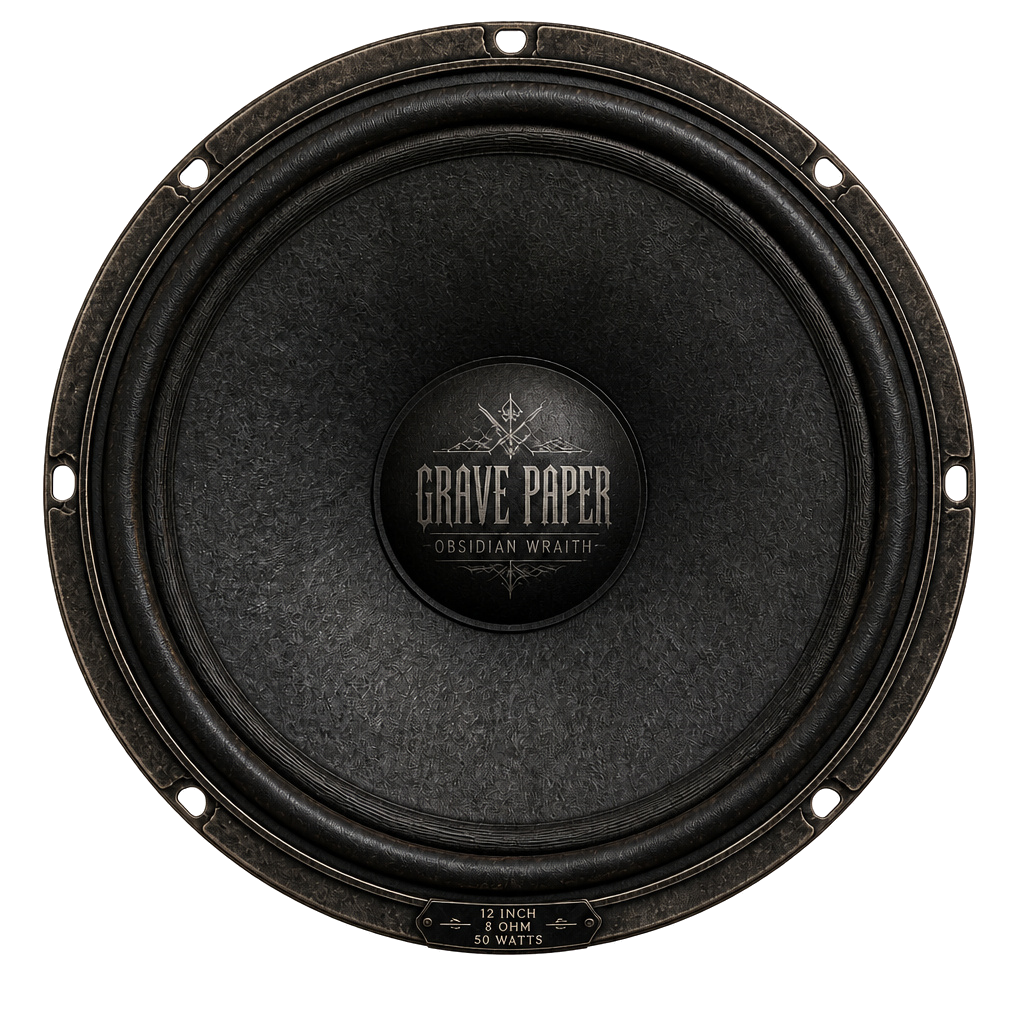

Grave Paper 12

Woody mids, softened treble and vintage paper bloom.

Specifications & placement

Nominal format: 12 in · 8 Ω · 50 W modeled target
Low reach: Broad to approximately 68 Hz
Mid contour: Warm 500 Hz–1.6 kHz body
Top character: Rolled and grainy
Transient / compression: Relaxed attack · early bloom

Why it exists

Creates a forgiving old-speaker response without losing the fundamental shape of a heavy riff.

Best for

Doom, sludge, classic drive and raw single-tracked parts.

Tradeoff

Less immediate low-end control than Crucible Edge or Obsidian Fang.

Starting point

Velvet Tomb R1, 12 cm, 20° off-axis, 62% from center.

SPEAKER · WRAITH GUITAR

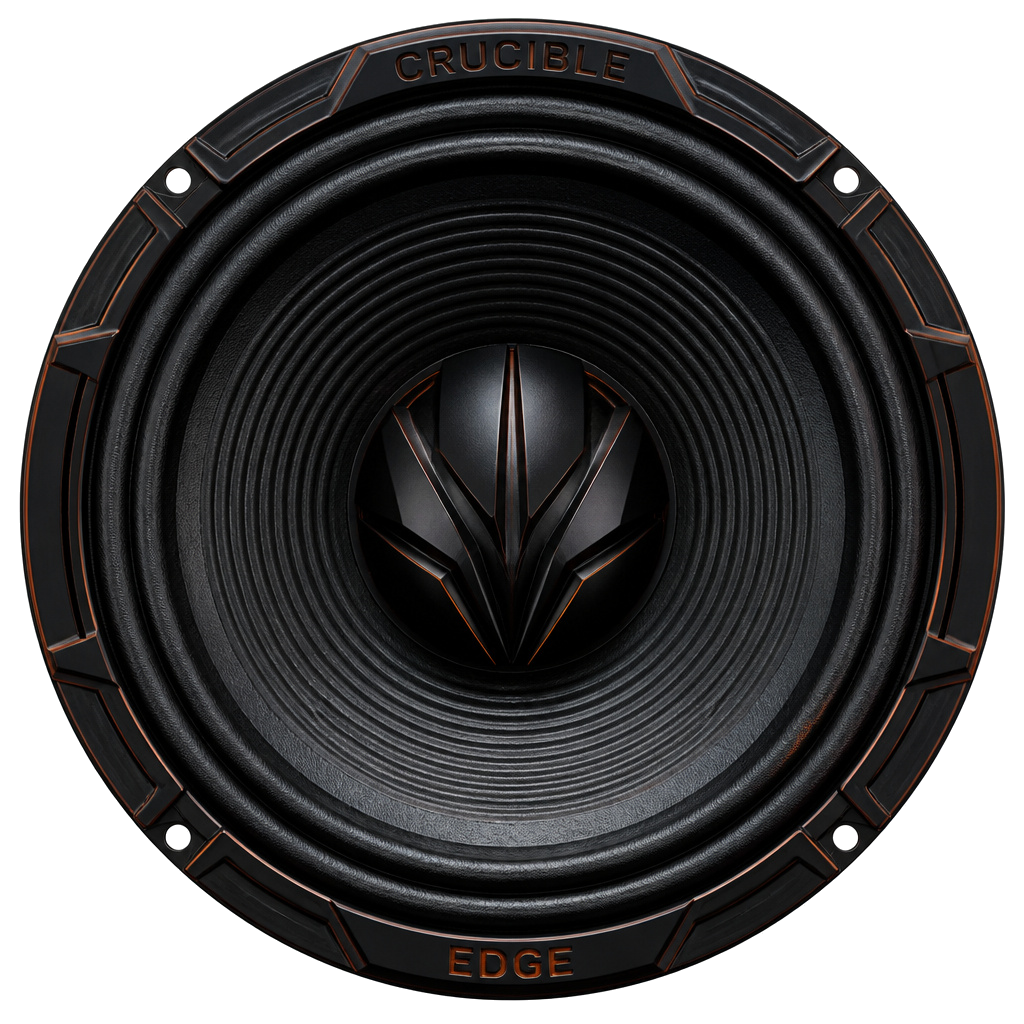

Crucible Edge 12

Maximum low-end discipline with sharp, dry articulation.

Specifications & placement

Nominal format: 12 in · 8 Ω · 100 W modeled target
Low reach: Controlled to approximately 78 Hz
Mid contour: Carved low mids · strong 2 kHz edge
Top character: Dry and precise
Transient / compression: Very fast · high headroom

Why it exists

Provides the fastest response in the Guitar set for complex, low-tuned passages.

Best for

Djent, technical metal, fast palm mutes and surgical re-amping.

Tradeoff

Its lean bloom can feel unforgiving on sparse or lightly driven parts.

Starting point

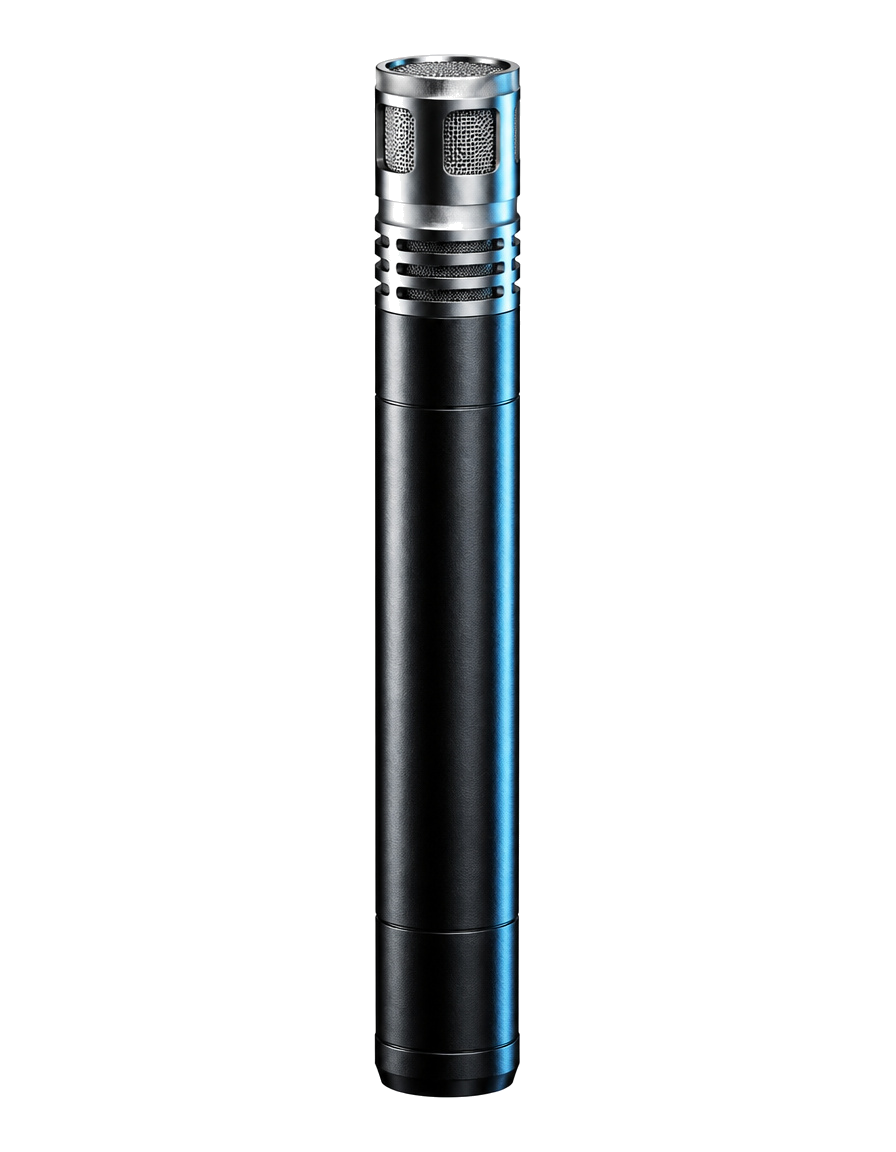

Shard C2, 8 cm, 25° off-axis, 45% from center.

SPEAKER · WRAITH GUITAR

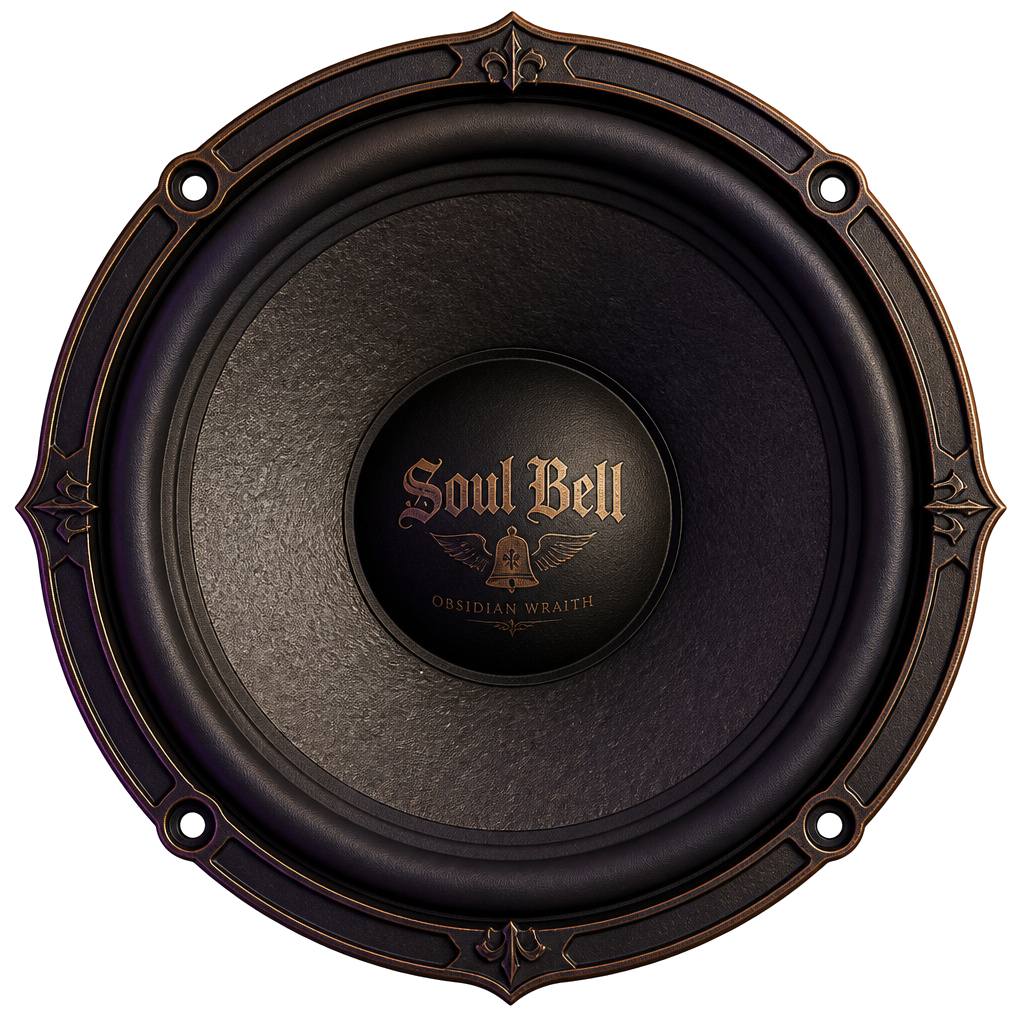

Soul Bell 12

Open mids, harmonic chime and a rounded musical attack.

Specifications & placement

Nominal format: 12 in · 8 Ω · 65 W modeled target
Low reach: Natural to approximately 75 Hz
Mid contour: Open 700 Hz–2.2 kHz
Top character: Chiming rather than fizzy
Transient / compression: Responsive · musical bloom

Why it exists

Balances detail with touch sensitivity for leads, cleans and expressive gain.

Best for

Lead tones, clean-to-crunch dynamics and melodic metal.

Tradeoff

Less sub control than the tighter modern choices.

Starting point

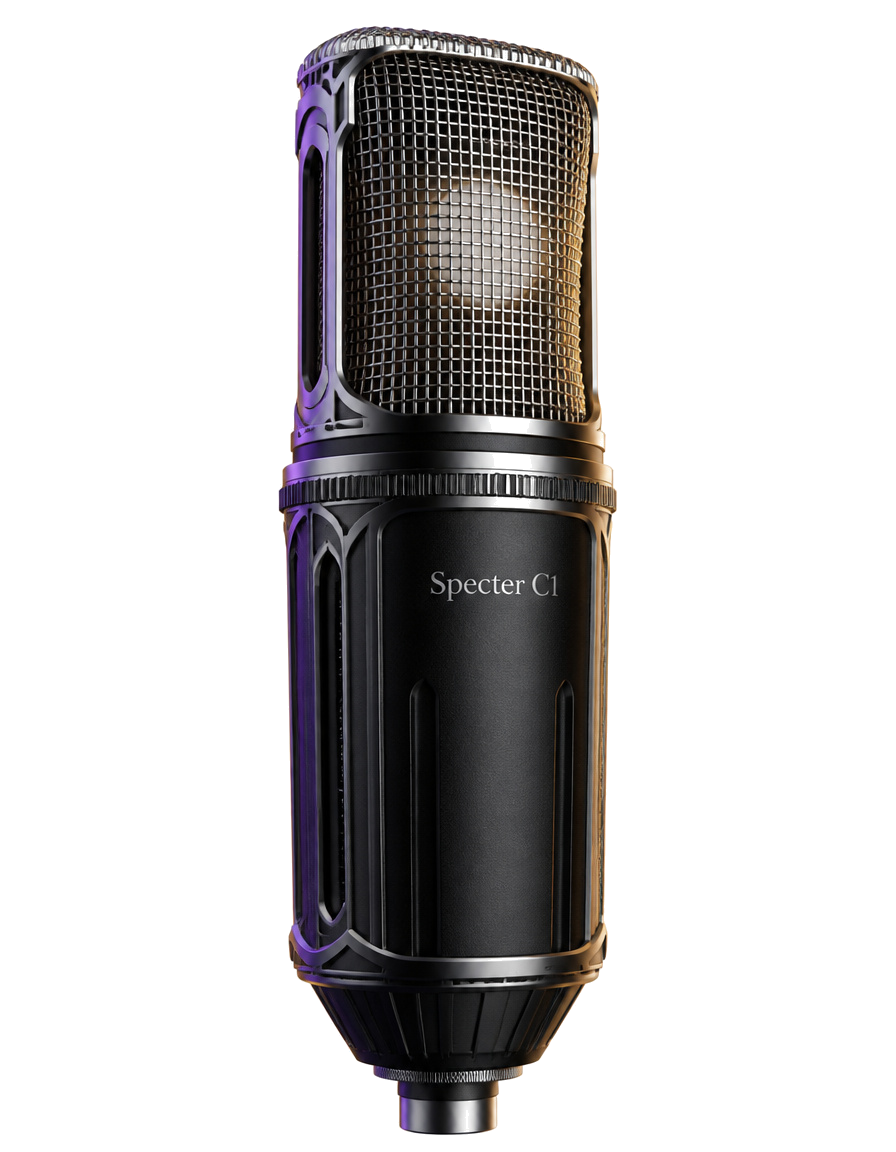

Specter C1, 18 cm, 30° off-axis, 55% from center.

SPEAKER · WRAITH GUITAR

Void Crown 12

Dark top end, deep low mids and smooth sustained weight.

Specifications & placement

Nominal format: 12 in · 8 Ω · 80 W modeled target
Low reach: Deep to approximately 62 Hz
Mid contour: Dense 250–900 Hz
Top character: Dark and controlled
Transient / compression: Medium attack · long bloom

Why it exists

Offers a deliberately shadowed cabinet voice for bright amps and abrasive distortion.

Best for

Blackened tones, doom layers and taming harsh captures.

Tradeoff

May need presence or a brighter microphone to remain forward in a dense mix.

Starting point

Broadside R2, 16 cm, 10° off-axis, 48% from center.

SPEAKER · WRAITH GUITAR

Cryptfire 8

Upcoming voice · artwork preview

The Wraith Octet’s 8-inch speaker identity: a dark front cone framed in engraved brass and gold.

Design & availability

Nominal format: 8-inch design
Matching cabinet: Wraith Octet 8x8
View: Front cone
Availability: Dedicated voice planned for the next plugin update

Why it exists

Design & availability

Nominal format: 8-inch design
Matching cabinet: Frost Octet 8x8
View: Front cone
Availability: Dedicated voice planned for the next plugin update

Why it exists

Gives the Frost Octet its own realm-matched speaker identity.

Best for

Exploring the Frost Octet 8x8 design.

Tradeoff

Artwork preview only. Its dedicated modeled voice is not selectable in 2.4.10.

Starting point

Explore the Frost Octet cabinet. In 2.4.10, use one of the five selectable Frost speaker voices; Cryosteel 8’s dedicated voice is pending.

MICROPHONE LOCKER

From immediate impact to sub-frequency mass.

Dynamic, ribbon, condenser, boundary and dedicated low-frequency response targets.

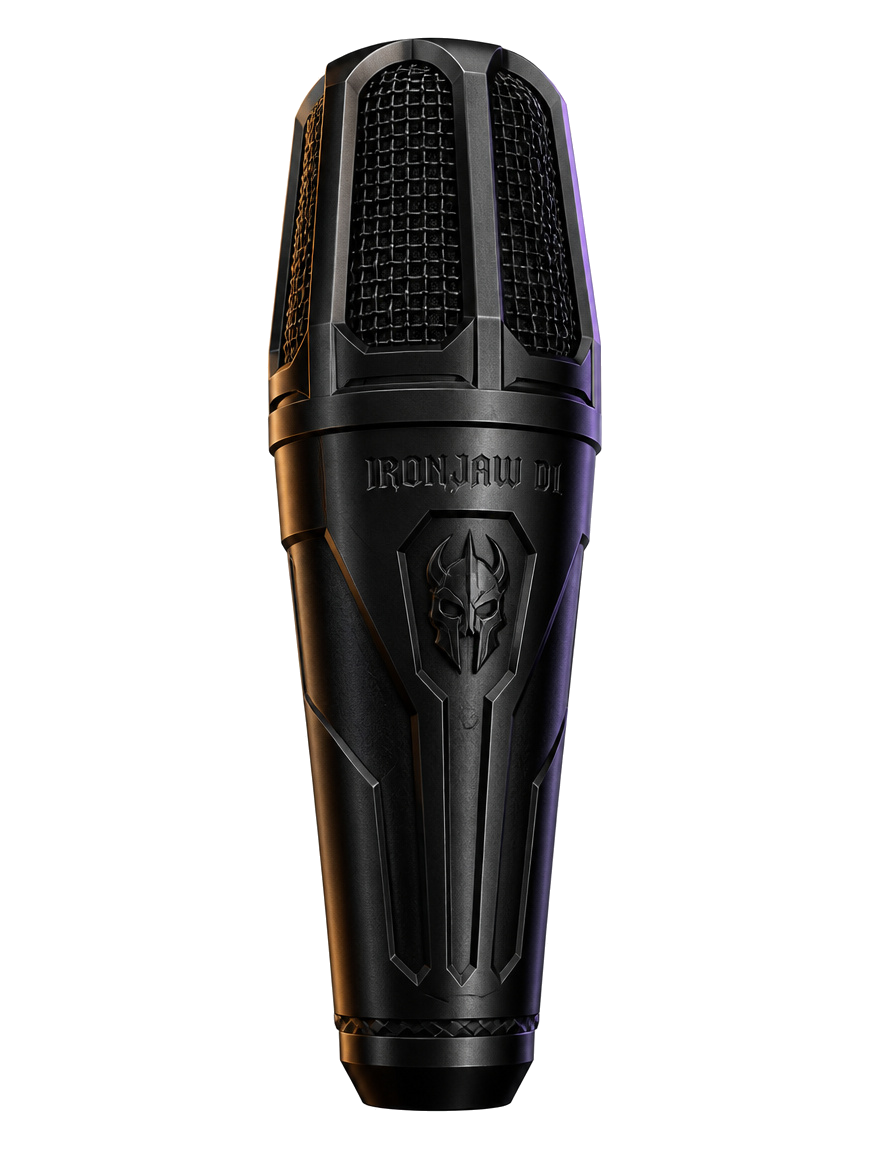

MICROPHONE · WRAITH GUITAR

Ironjaw D1

Compact cardioid dynamic with tight lows and aggressive upper-mid focus.

Specifications & placement

Operating type: Moving-coil dynamic
Pickup target: Cardioid
Useful modeled range: 60 Hz–15 kHz
Proximity behavior: Moderate
Off-axis / transient: Strong softening · fast attack

Why it exists

A rugged close-capture reference designed to keep heavy guitars immediate.

Best for

Modern rhythm cabinets and high-gain attack.

Tradeoff

Center placement can emphasize fizz.

Starting point

3–8 cm · 10–25° · 35–50% from center.

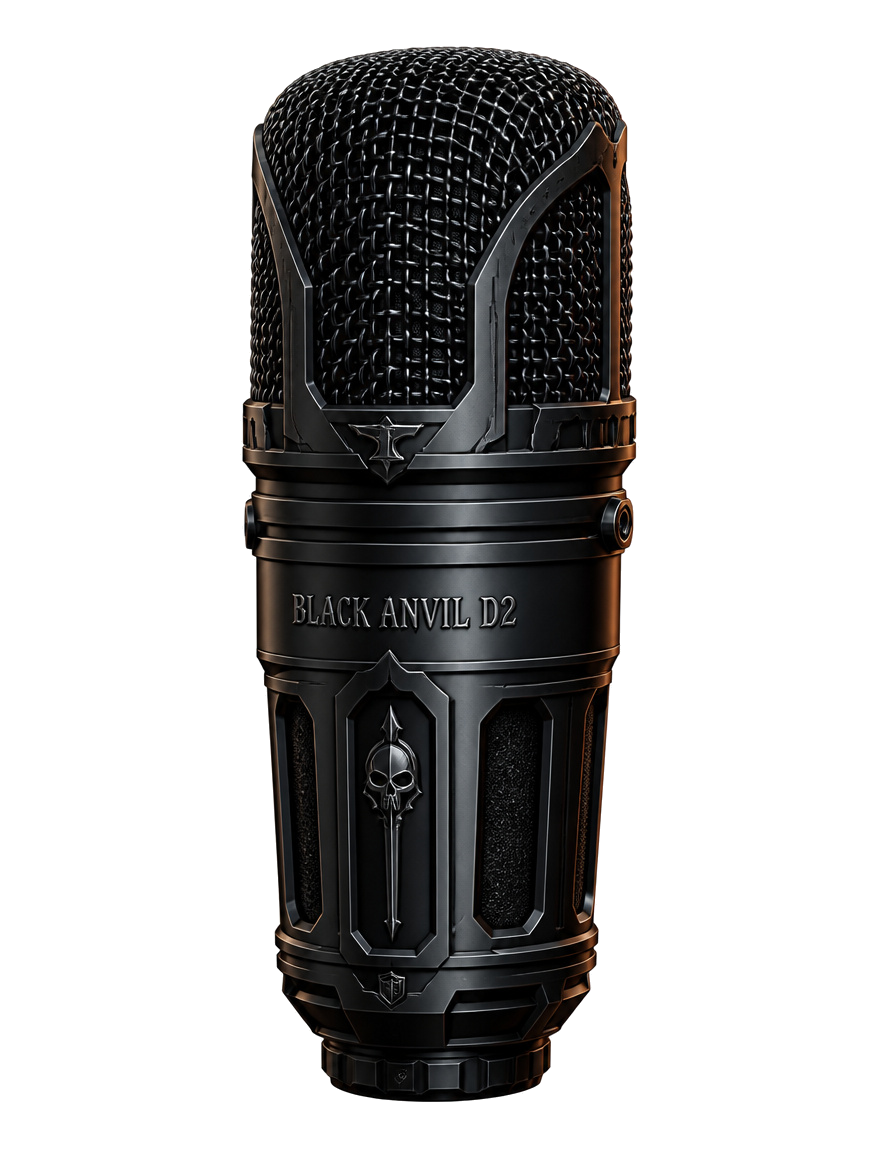

MICROPHONE · BOTH REALMS

Black Anvil D2

Large dynamic with full low mids, smooth presence and high headroom.

Specifications & placement

Operating type: Large moving-coil dynamic
Pickup target: Cardioid
Useful modeled range: 35 Hz–16 kHz
Proximity behavior: Strong but controlled
Off-axis / transient: Stable · rounded-fast

Why it exists

Provides weight without the softened transient of a ribbon.

Best for

Heavy guitar, bass fundamentals and bright speakers.

Tradeoff

Can become thick when paired with a dark cone at close distance.

Starting point

7–14 cm · 15–30° · 45–60% from center.

MICROPHONE · FROST BASS

Frost Needle D3

Focused supercardioid-style dynamic with lean proximity and fast definition.

Specifications & placement

Operating type: Precision moving-coil dynamic
Pickup target: Supercardioid-style
Useful modeled range: 50 Hz–18 kHz
Proximity behavior: Low
Off-axis / transient: Rapid rolloff · very fast

Why it exists

Keeps bass attack precise while rejecting simulated room spill.

Best for

Ten-inch Frost speakers and parallel grind paths.

Tradeoff

Can sound lean without Foundation or Room support.

Starting point

4–10 cm · 15–25° · 38–48% from center.

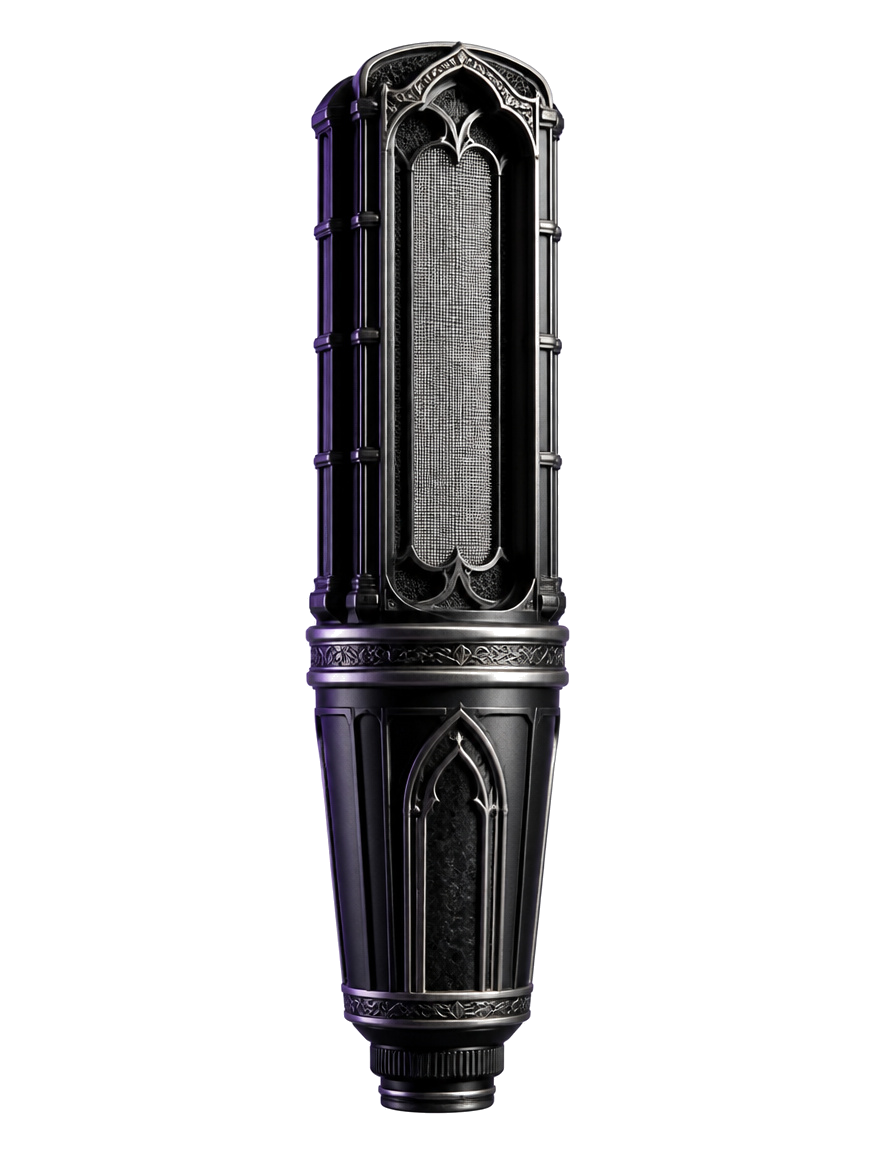

MICROPHONE · WRAITH GUITAR

Velvet Tomb R1

Passive ribbon warmth with dark treble and dense natural body.

Specifications & placement

Operating type: Passive ribbon
Pickup target: Figure-eight
Useful modeled range: 30 Hz–14 kHz
Proximity behavior: Strong
Off-axis / transient: Natural ambience · soft

Why it exists

Smooths abrasive cabinets while preserving midrange texture.

Best for

Vintage, doom, lead and harsh-capture correction.

Tradeoff

Strong proximity and figure-eight room pickup require careful distance.

Starting point

10–24 cm · 15–35° · 50–70% from center.

MICROPHONE · BOTH REALMS

Broadside R2

Wide ribbon with thick low mids and spacious cabinet depth.

Specifications & placement

Operating type: Wide passive ribbon
Pickup target: Figure-eight
Useful modeled range: 25 Hz–13 kHz
Proximity behavior: Very strong
Off-axis / transient: Broad ambience · softened

Why it exists

Creates the broadest, most dimensional ribbon perspective.

Best for

Layering, room-aware cabinets and taming hard transients.

Tradeoff

Can obscure attack when used alone on fast material.

Starting point

14–30 cm · 10–25° · 45–65% from center.

MICROPHONE · FROST BASS

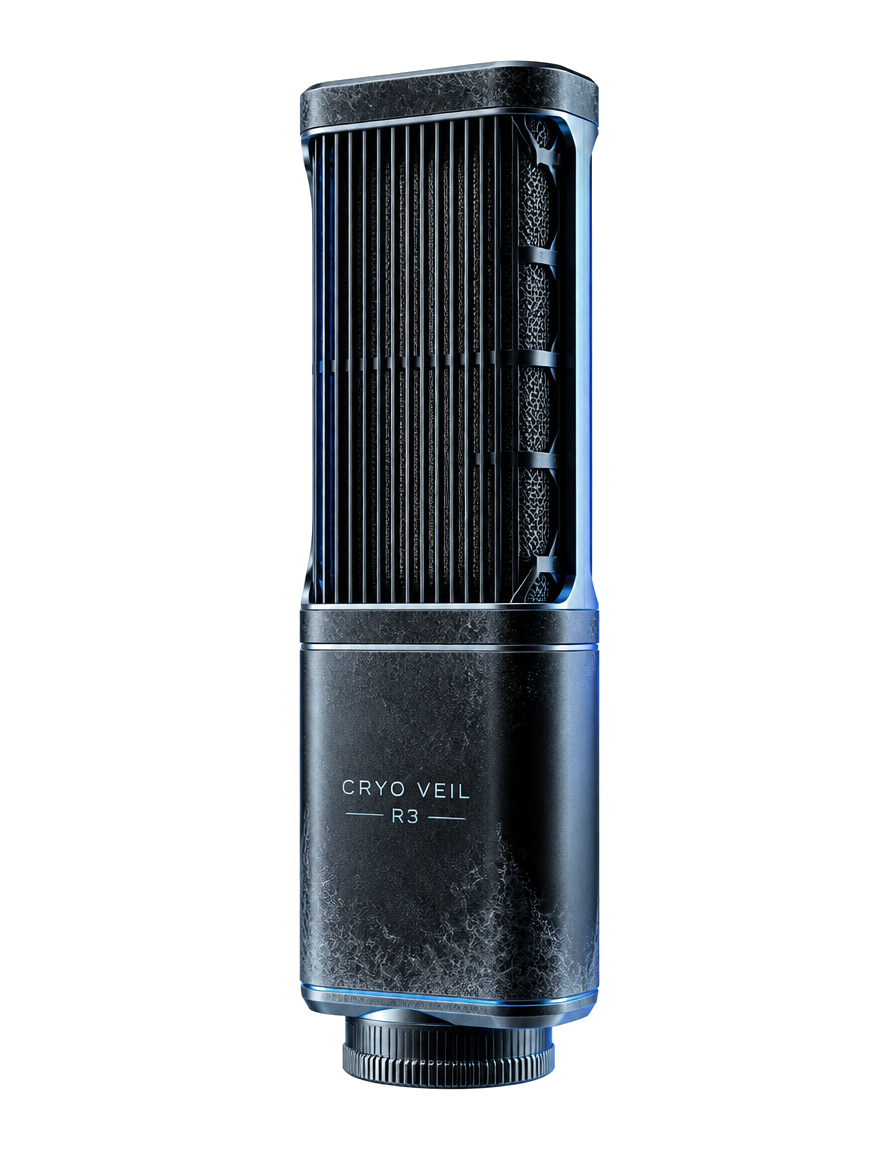

Cryo Veil R3

Active ribbon smoothness with clearer highs and tighter proximity behavior.

Specifications & placement

Operating type: Active ribbon
Pickup target: Figure-eight
Useful modeled range: 25 Hz–18 kHz
Proximity behavior: Controlled
Off-axis / transient: Smooth room pickup · medium-soft

Why it exists

Keeps the ribbon body while preserving more bass articulation.

Best for

Fifteen-inch bass speakers, melodic lines and smooth grind.

Tradeoff

Still softer on attack than a dynamic or condenser.

Starting point

12–24 cm · 20–35° · 45–60% from center.

MICROPHONE · BOTH REALMS

Specter C1

Large condenser with open transients, extended treble and detailed room capture.

Specifications & placement

Operating type: Large-diaphragm condenser
Pickup target: Cardioid-style
Useful modeled range: 20 Hz–20 kHz
Proximity behavior: Moderate
Off-axis / transient: Open ambience · fast

Why it exists

Reveals speaker texture and air when a mix needs detail.

Best for

Clean guitar, lead definition, full-range bass and room blending.

Tradeoff

Can expose fizz, pick noise and untreated-room reflections.

Starting point

15–35 cm · 25–40° · 50–70% from center.

MICROPHONE · BOTH REALMS

Shard C2

Small condenser with neutral body and extremely fast transient detail.

Specifications & placement

Operating type: Small-diaphragm condenser
Pickup target: Cardioid-style
Useful modeled range: 30 Hz–20 kHz
Proximity behavior: Low
Off-axis / transient: Predictable softening · fastest

Why it exists

Provides the most analytical view of cone motion and articulation.

Best for

Technical guitar, Ice Vein, clean bass and blended precision.

Tradeoff

Needs angle or treble control on bright speakers.

Starting point

8–20 cm · 25–45° · 42–60% from center.

MICROPHONE · WRAITH GUITAR

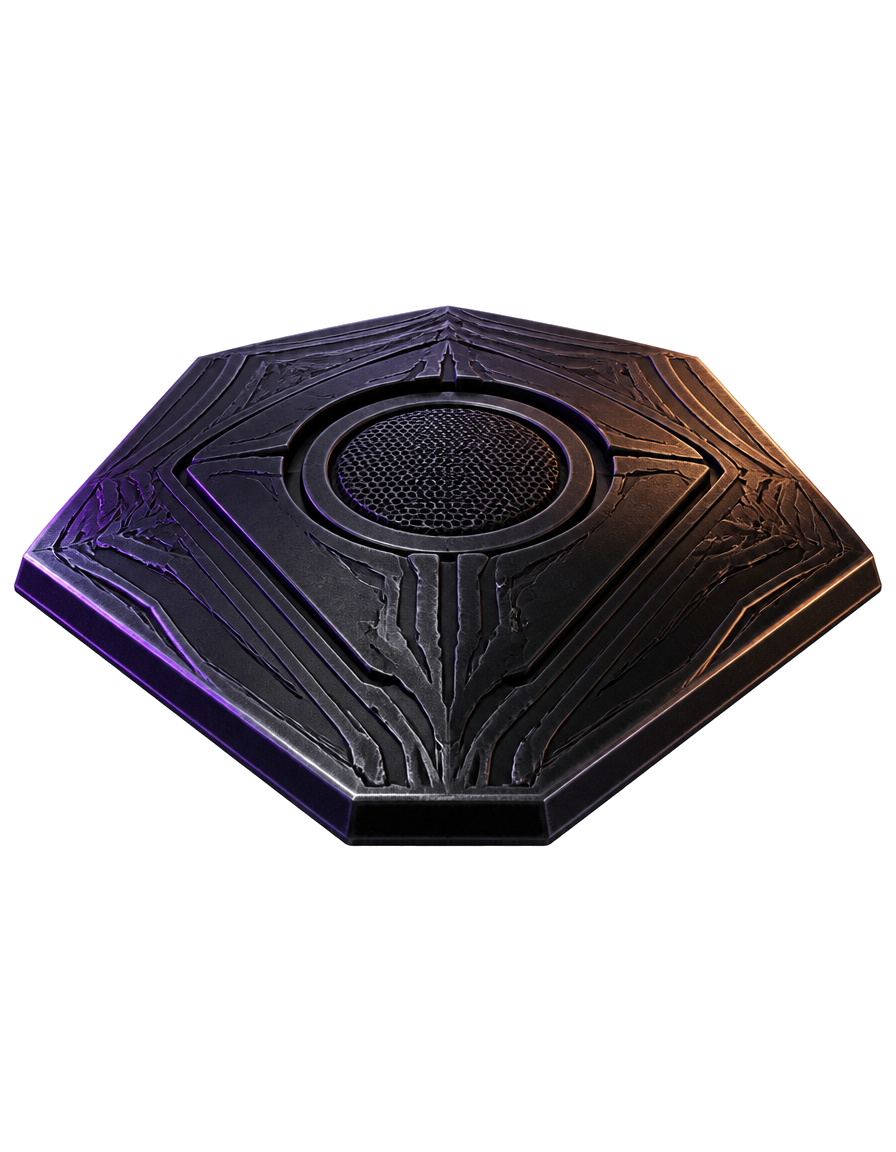

Cryptplate B1

Boundary capture with immediate attack and reduced early-reflection smear.

Specifications & placement

Operating type: Pressure-zone boundary condenser
Pickup target: Hemispherical cardioid-style
Useful modeled range: 40 Hz–18 kHz
Proximity behavior: Minimal
Off-axis / transient: Wide plane · immediate

Why it exists

Creates focused impact from a low-profile phase-coherent placement.

Best for

Dry rhythm impact and tightly controlled simulated rooms.

Tradeoff

Offers less traditional proximity movement than an upright microphone.

Starting point

Cabinet floor or boundary · 0–15° · 12–30 cm equivalent.

MICROPHONE · FROST BASS

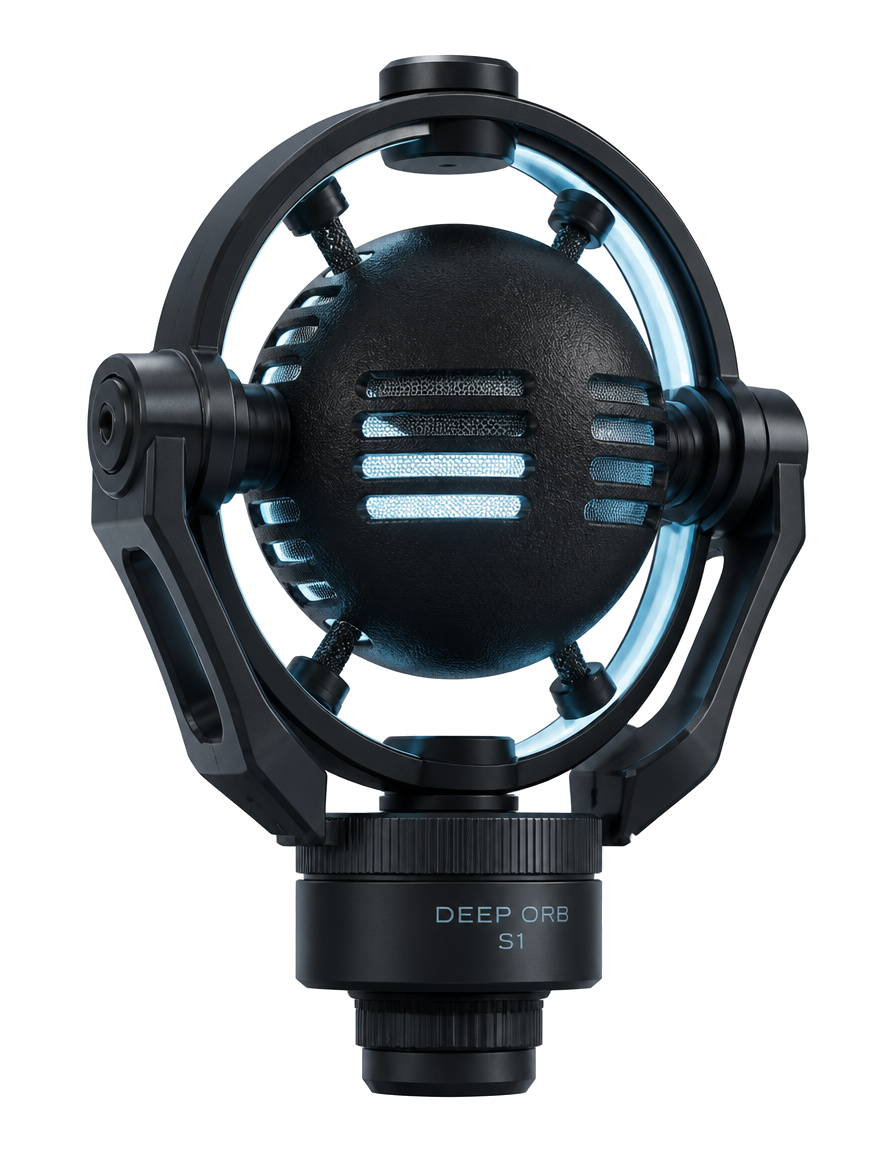

Deep Orb S1

Sub-frequency dynamic with extreme extension, soft attack and limited highs.

Specifications & placement

Operating type: Sub-frequency dynamic
Pickup target: Cardioid-style
Useful modeled range: 15 Hz–5 kHz
Proximity behavior: Heavy
Off-axis / transient: Little high detail · soft

Why it exists

Adds a dedicated low-frequency channel without pretending to be a full-range microphone.

Best for

Subcrypt, Glacial Titan and parallel low-foundation blends.

Tradeoff

Must be paired with a faster microphone when note definition matters.

Starting point

18–40 cm · 0–15° · centered on the low-frequency source.

PLACEMENT & SPACE

Seven controls, each with one clear job.

Position

Moves from darker cone edge toward brighter dust-cap center.

Distance

Close adds immediacy and proximity; farther adds integration and space.

Angle

Off-axis placement softens presence and changes rejection.

Room

Blends the short cabinet-space response.

Treatment

Chooses reflective, balanced, absorbed or isolated room behavior.

Damping / Density

Controls decay length and how tightly low-frequency energy settles.

Virtual Surround

Adds stereo-compatible, signal-derived early reflections while keeping the direct sound and low foundation centered. It is not discrete 5.1, 7.1, or Atmos output.
